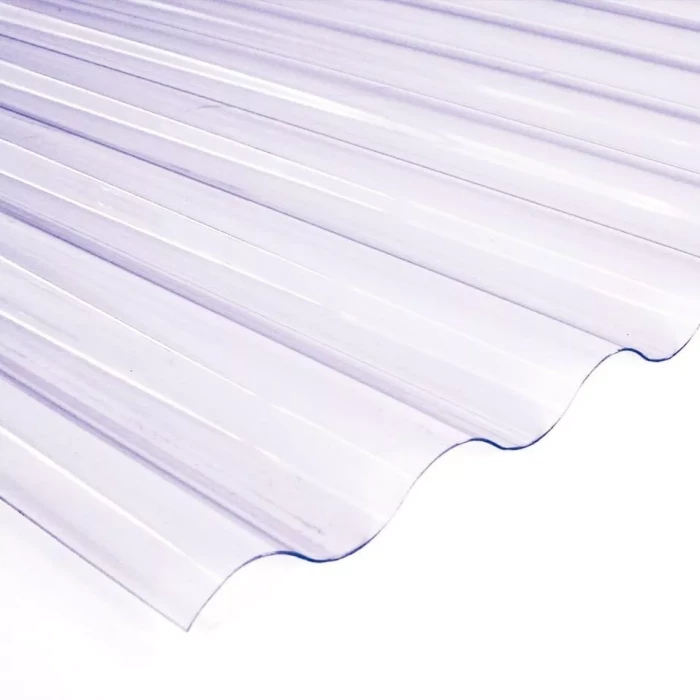

0,8mm corrugated solid PVC sheet 76 /18 iron, clear 900x2000mm

Article: 1085351

Category: PVC roofing materials

Unit: pc.

Barcode: 4031091109569

10,08 €/pc.
Available in stores:
Mūkusalas iela 93
Ata iela 5a
t/c Sāga

Owing to a low weight, impact resistance and good weather resistance the material is widely used for outdoor applications: for sheds, roof windows, conservatories, greenhouses, building extensions, fences, as roofing and walls for industrial and agricultural buildings. Internal works: for transparent partition walls and decorative elements.

Technical specifications:

- density - 1,38 g/cm3
- expandability - 0,09 mm/m/°C
- operating temperature -30°C +65°C
- heat conduction (DIN 52612) - 0,15W/mK
- softening temperature (DIN 53460) - +70°C
- min. bending radius - 2.5 m

Installation basics:

do not attempt install of the sheets at temperature under + 5°C.

sheets should be installed so that waves are perpendicular to the beams.

beams can be wooden or metal and they should be painted white (to reflect heat produced by sunlight)

the sheets are designed for single-layer application; do not lay the sheets on other transparent or mat materials.

fasten sheets through drilled holes with a diameter exceeding the diameter of screws by 4 - 5 mm to compensate expansion of sheets.

in roof installation, the sheets are fastened to the upper wave of the sheet, in wall installation – to the lower wave of the sheet.

Weight 18.90 kg
Dimensions 1 x 200 x 90 cm
