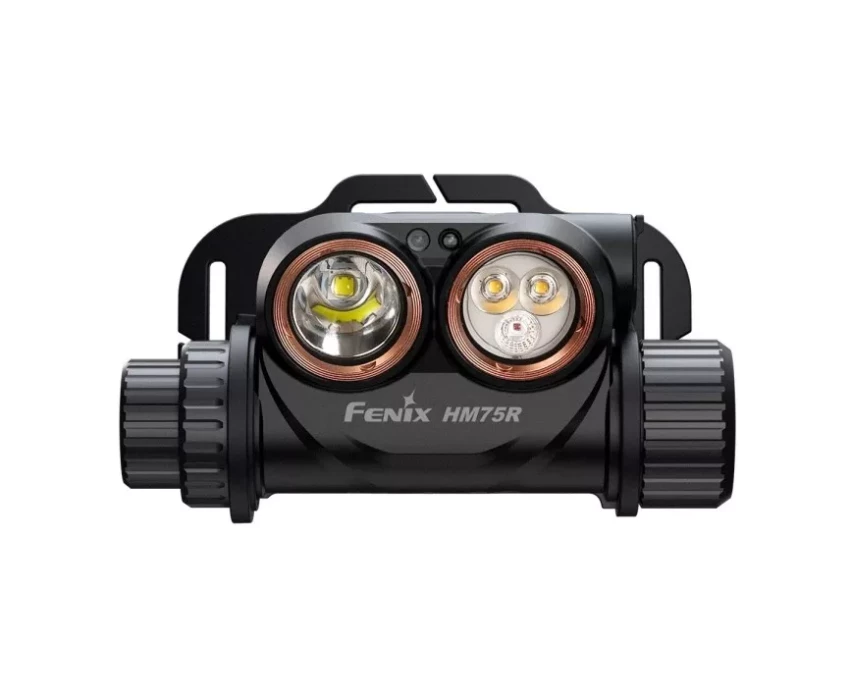

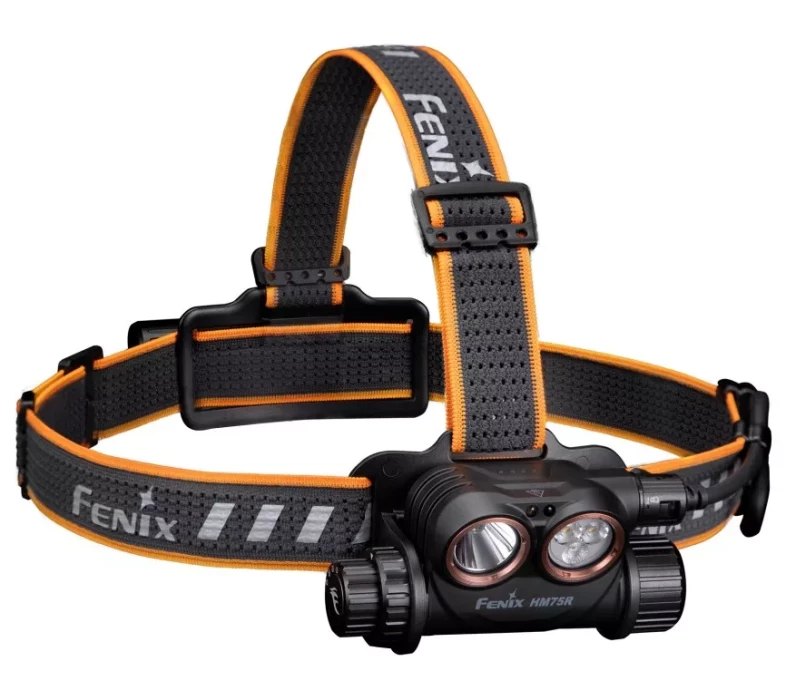

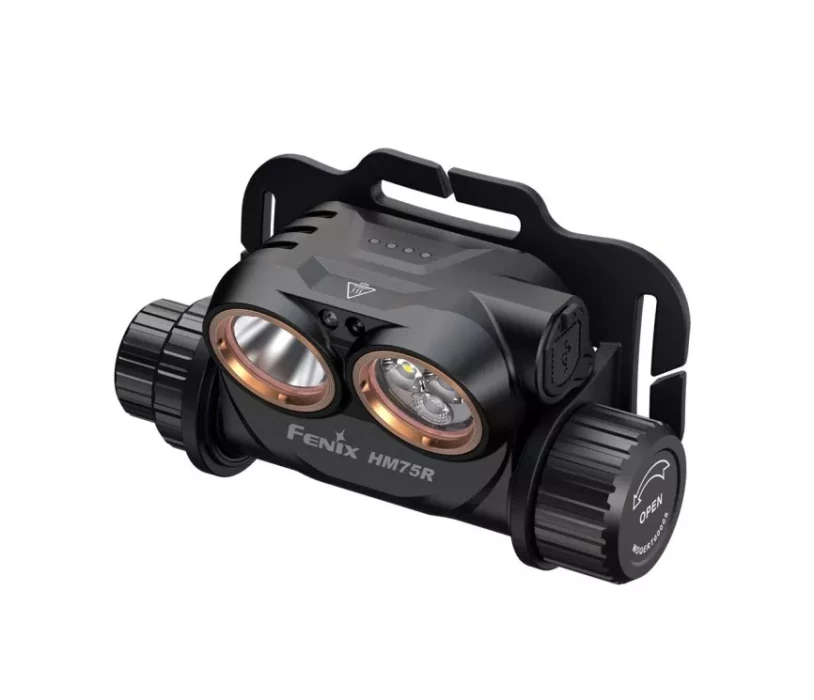

Fenix HM75R LED Headlamp 1600 lm IP68 USB-C Rechargeable, 12 Modes

Fenix HM75R LED Headlamp 1600 lm IP68 USB-C Rechargeable, 12 Modes

The Fenix HM75R is a high-performance industrial headlamp featuring a split design and exceptionally long runtime. Powered by two included rechargeable batteries, this industrial headlamp delivers a maximum output of 1600 lumens with a beam distance of up to 223 meters. It offers an impressive maximum runtime of up to 234 hours in the lowest 5-lumen mode.

Dual-switch control ensures easy operation: a rotary switch is used for on/off and mode selection, while an electronic switch allows brightness adjustment. The combination of spotlight, floodlight, and red light in one device enables flexible lighting for various tasks and environments.

The included 5000 mAh high-capacity battery provides extended runtime and is easy to recharge via USB-C. It can also be used as a power bank to charge other digital devices. The magnesium alloy housing ensures durability, achieving an IP68 rating and resistance to drops from heights of up to 2 meters.

Whether for rescue operations, industrial use, construction sites, or outdoor activities, the Fenix HM75R headlamp delivers reliable performance.

Features

• Maximum output: 1600 lumens, maximum beam distance: 223 m
• One Luminus SST40 cold white LED, two Luminus SST20 neutral white LEDs, and one OSRAM GR QSSPA1.23 red LED (50,000-hour lifespan each)
• Dual power source for maximum convenience
• High-quality magnesium alloy construction – lightweight and durable
• Rotary switch and electronic switch for quick and easy operation
• Spotlight, floodlight, and red light combined in one unit
• Intelligent overheat protection with automatic brightness reduction
• USB Type-C port in the battery case for fast charging and discharging
• Detachable power extension cable for multiple carrying options; usable as an emergency power bank
• Two USB Type-C ports with internal moisture protection

Specifications

• Max lumens: 1600
• Max beam distance: 223 m
• Max runtime: 234 h (floodlight) / 365 h (red light)
• Lighting modes: 12 modes (4 spotlight, 4 floodlight, 4 red light)

LED types:

• 1 × Luminus SST40 (cold white)
• 2 × Luminus SST20 (neutral white)
• 1 × OSRAM GR QSSPA1.23 (red)

Color temperature:

• Spotlight: 6500 K
• Floodlight: 4000 K

Batteries:

• 1 × 18650 Li-ion (included)
• 1 × 21700 Li-ion (included)

Runtime:

• 1×18650: up to 100 h
• 1×18650 + 1×21700: up to 234 h
• Performance (with internal ARB-L18-3400 battery)

Spotlight

• Low: 50 lm (50 h 50 min) – 39 m
• Medium: 350 lm (11 h) – 101 m
• High: 800 lm (3 h 30 min) – 158 m
• Turbo: 1600 lm (1 h 30 min) – 223 m

Floodlight

• Low: 5 lm (100 h) – 5 m
• Medium: 150 lm (8 h) – 25 m
• High: 400 lm (4 h) – 43 m
• Turbo: 1000 lm (1 h 50 min) – 60 m

Red Light

• Low: 5 lm (110 h) – 4 m
• Medium: 30 lm (32 h) – 9 m
• High: 120 lm (5 h 20 min) – 16 m
• Flashing: 5 lm (220 h)

Dimensions & Weight

• Headlamp: 91.1 × 41 × 53.5 mm

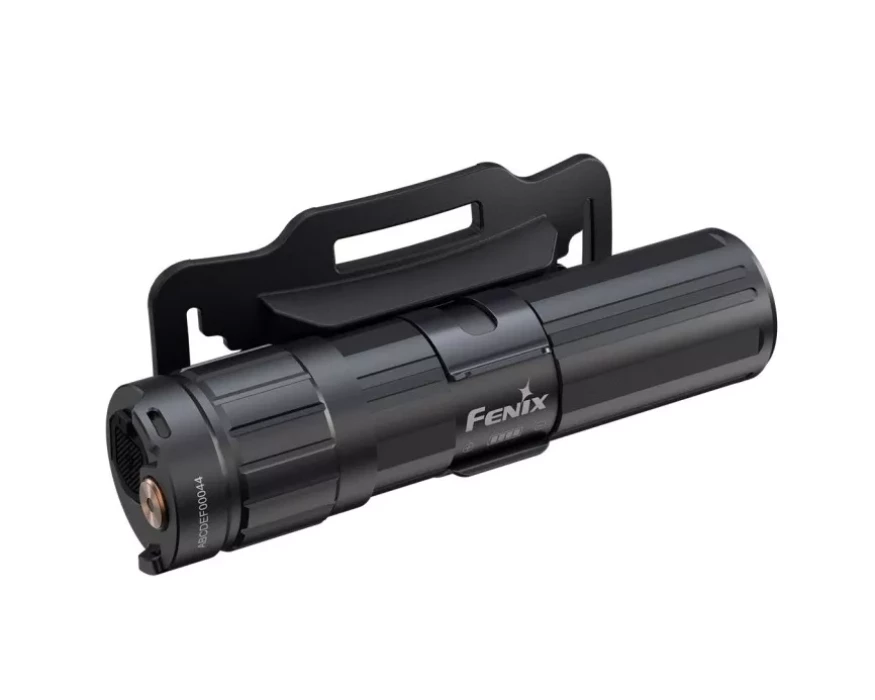

• Battery case: 107.7 × 28 × 28 mm

Weight:

• 321 g (with batteries, battery case, and headband)
• 170 g (without external battery and cable)

Included

• Fenix HM75R headlamp
• Headband
• Fenix ARB-L18-3400 18650 battery
• Fenix ARB-L21-5000 V2 21700 battery
• 1 m USB Type-C charging/extension cable
• 2 spare O-rings
