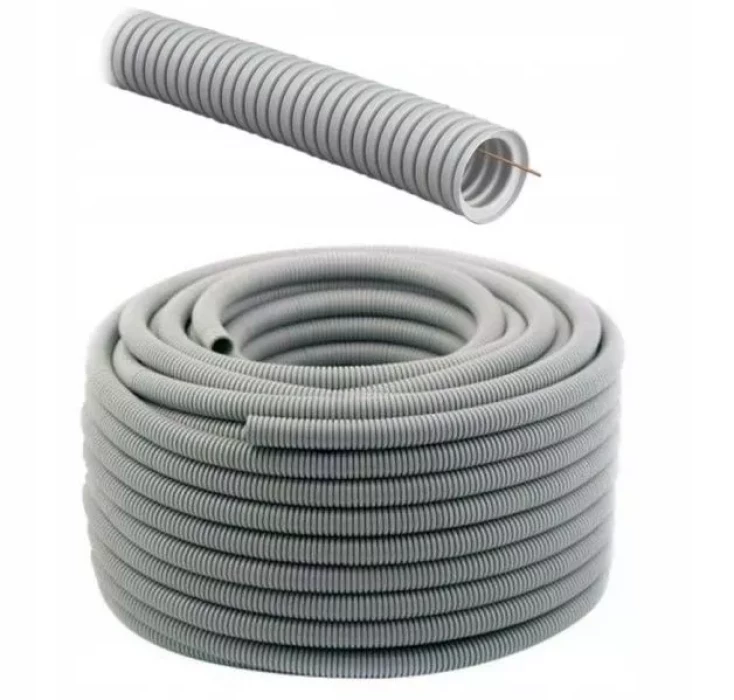

Corrugated PVC Electrical Conduit with Draw Wire 20 mm, 320 N, 50 m, Grey

Corrugated PVC Electrical Conduit with Draw Wire 20 mm, 320 N, 50 m, Grey is a flexible protective conduit designed for routing electrical, data, antenna and other low-voltage cables in dry indoor installations.

The corrugated construction provides flexibility and simplifies installation in wall chases, beneath plaster, inside plasterboard partitions, hollow walls and suspended ceilings. The integrated draw wire makes cable installation faster and easier.

• Designed to protect electrical and communication cables.
• Outside diameter: 20 mm.
• Inside diameter: approximately 14.5 mm.
• Coil length: 50 m.
• Compression resistance: 320 N.
• Material: PVC.
• Colour: grey.
• Flexible corrugated construction.
• Integrated cable draw wire.
• Suitable for concealed electrical installations.
• Suitable for installation beneath plaster.
• Suitable for plasterboard partitions and hollow walls.
• Suitable for suspended ceilings.

Installation: select the conduit size according to the number and diameter of the cables. Plan the route with as few tight bends as possible. Use accessible pulling or junction boxes on long routes and where several bends are required.

Cut the conduit with a suitable tool and remove sharp edges. Secure it using fasteners intended for 20 mm conduit. Avoid crushing, flattening or sharply bending the conduit.

Cable pulling: attach the cable securely to the integrated draw wire. Keep the connection smooth and compact to prevent it from catching inside the conduit. Pull evenly without sudden jerks.

Important: the 320 N rating is intended for light mechanical loads. Verify the exact product documentation before using the conduit in concrete, outdoors, underground or under direct ultraviolet exposure.
