Even more convenience, even less power consumption

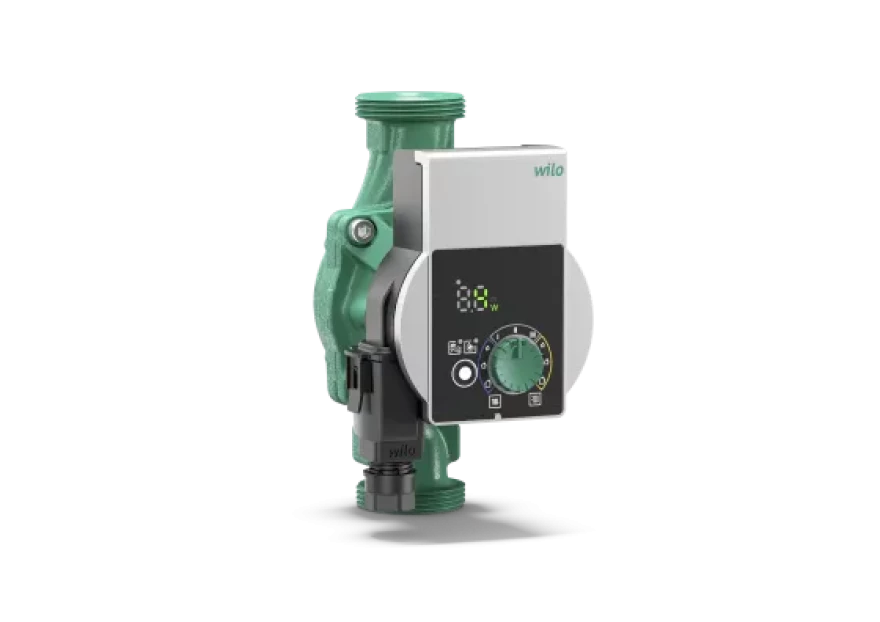

A visible symbol of the new generation of high-efficiency pumps for heating and air-conditioning systems in residential dwellings is the green operating button, which together with new functions provides maximum convenience in commissioning and maintenance. Defaults for radiators or underfloor heating – symbolised by pictograms – save time during commissioning. The energy efficiency was improved once more and the power consumption is thus even lower and always in view. And thanks to the more compact construction, pump replacement is now even easier.

Your advantages

• Maximum operating convenience owing to the Green Button Technology with new, intelligent settings, intuitive user interface and new functions
• Optimised energy efficiency owing to EC motor technology, settings with an accuracy of 0.1 m, display of current power consumption and flow rate
• Quick and easy installation and smooth replacement owing to the new, optimised construction
• Easy maintenance and high degree of operational reliability thanks to automatically and manually triggered restart or pump venting function
• Maximum operational reliability thanks to proven technology

Construction

• Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application

• All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function

Operating modes

• Constant differential pressure
• Variable differential pressure
• Constant speed (3 control pump curves)

Manual functions

• Setting the operating mode in accordance with the application
• Setting of pump output (delivery head)
• Setting the constant speed
• Pump venting function
• Manual restart

Automatic functions

• Continuous power adjustment according to the operating mode
• Automatic restart
• Automatic dry-running detection

Signal and display functions

• Display of the current power consumption in W
• Display of the current flow rate in m³/h
• Display of delivery head for setting
• Display of fault messages (error codes)
• Display of manually activated restart or pump venting function

Equipment

• Wrench attachment point on pump body
• Quick electrical connection with Wilo-Connector
• Pump venting function
• Manual restart
• Blocking-current proof motor
• Particle filter

Technical data

• Fluid temperature -10 °C to +95 °C
• Mains connection 1~230 V, 50 Hz
• Protection class IPX2D
• Screwed connection Rp ½, Rp 1 and Rp 1¼
• Max. operating pressure 10 bar
