Wilo submersible sewage pump Rexa MINI3-V04.09/M05-523/A-5M, 3094002

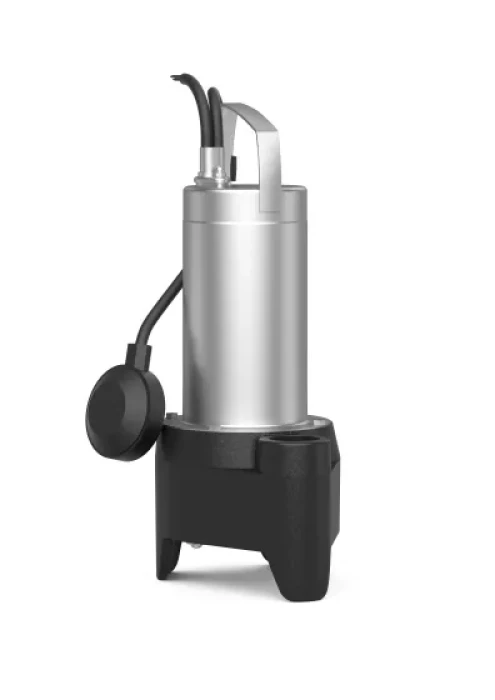

The Rexa MINI3 submersible sewage pump is designed for fixed or mobile installation in wet environments. This pump is suitable for draining houses and properties and for pumping sewage and wastewater without faecal content. Its compact design allows for installation even in narrow drainage trenches. The motor housing is made of stainless steel, while the pump housing is made of grey steel and the impeller is made from composite material. The motor is surface-cooled, with waste heat being dissipated to the surrounding medium. In the event of overheating, the motor automatically shuts off and restarts once cooled. A sealing chamber filled with white oil is located between the motor and the hydraulics. On the media side, there is a mechanical seal, and on the motor side, there is a shaft sealing ring.

Cable length - 10 m

Float - Yes

Max. immersion depth - 7 m

Max. particle size - 40 mm

Power Supply - 230 VAC

Pump diameter - 216 mm

Pump flow rate - 19 m3/h

Pump head - 9 m
