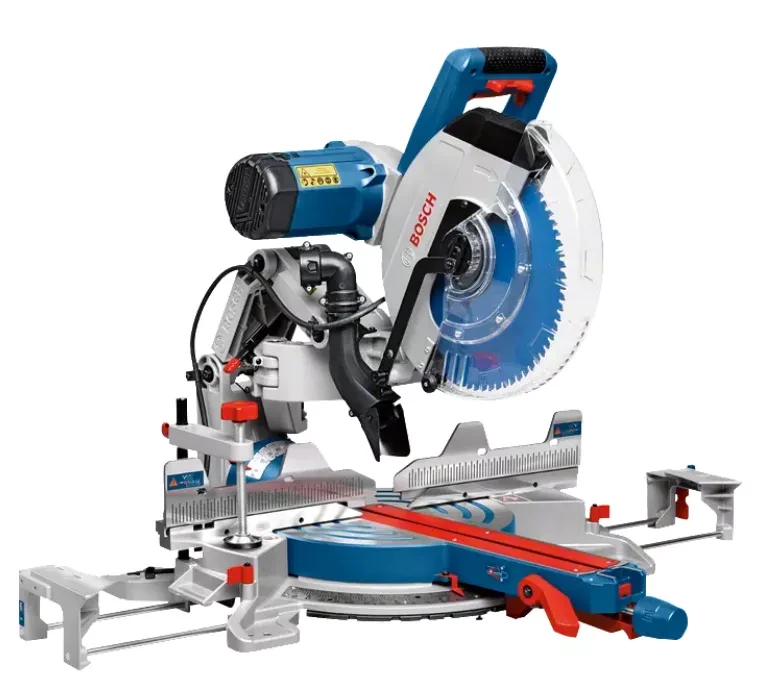

Circular saw GCM12 GDL Stationary circular saw, 0601B23600

With the most precise cutting results in the Bosch range, the GCM 12 GDL Professional is the best choice for jobs that require high precision. The innovative, maintenance-free sliding handle guide of the angle saw-mitre saw is very strong and provides high durability. Thanks to the hinge design of the sliding handle, the GCM 12 GDL Professional is completely compact. Equipped with a double-line laser and a top-quality saw blade, this angle saw-mitre saw makes very precise cuts, achieving a cutting depth of up to 170 x 140 mm for an L profile (maximum thickness 36 mm).

Equipment & application
The GCM 12 GDL Professional is designed for cross cuts, mitre cuts and grooving in wood, wooden logs and wood composites, as well as board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.

Additional information
The GCM 12 GDL Professional is also equipped with features such as a smart brake system, dual precision line laser and easy start.

Key data
Workpiece dimensions at 0° cutting angle
104 x 341 mm
Workpiece dimensions at 45° horizontal cutting angle
104 x 240 mm
Workpiece dimensions at 45° vertical cutting angle
51 x 341 mm
Horizontal cutting angle
52 ° K / 60 ° L
Vertical cutting angle
47 ° K / 47 ° L
Tool dimensions (length x width x height)
670 x1100 x740 mm
No-load speed*
4,000 rpm
Saw blade diameter
305 mm
Blade center bore Ø
30 mm
Weight*
29.4 kg
Rated power consumption
2,000 W
Voltage
230 V
Packaging dimensions (length x width x height)
635 x 790 x 565 mm
